Lcd video wall

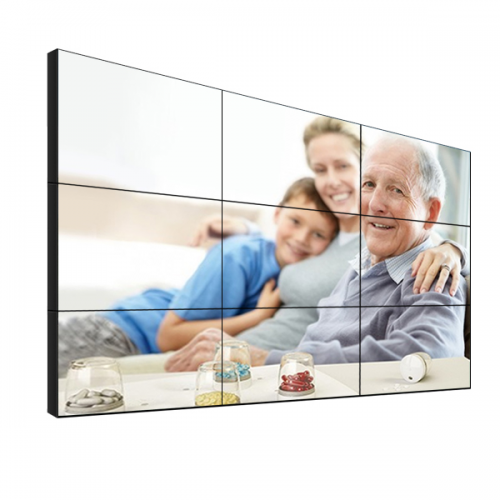

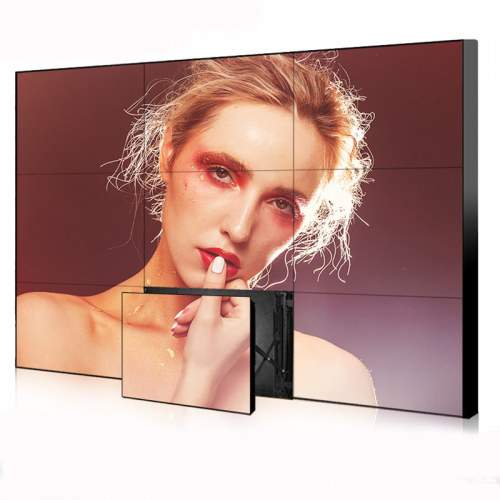

Factory price 49inch super slim wall mounted 3*3 4K 3.5mm Daisy chain digital signage lcd video wall
LCD VIDEO WALL Details:
1.Narrow Bezel 3.5mm. each edge is 1.7mm.
2.Built-in SoC* and Synced Playback
3.Clear Viewing Angle
4.Uniform Brightness
5.Accommodates landscape and portrait orientation
6.Integrated cable management
7.Modular mount for virtually unlimited configurations
8.Security hardware option deters tampering and theft
9.VESA® Compatible up to 600 x 400mm

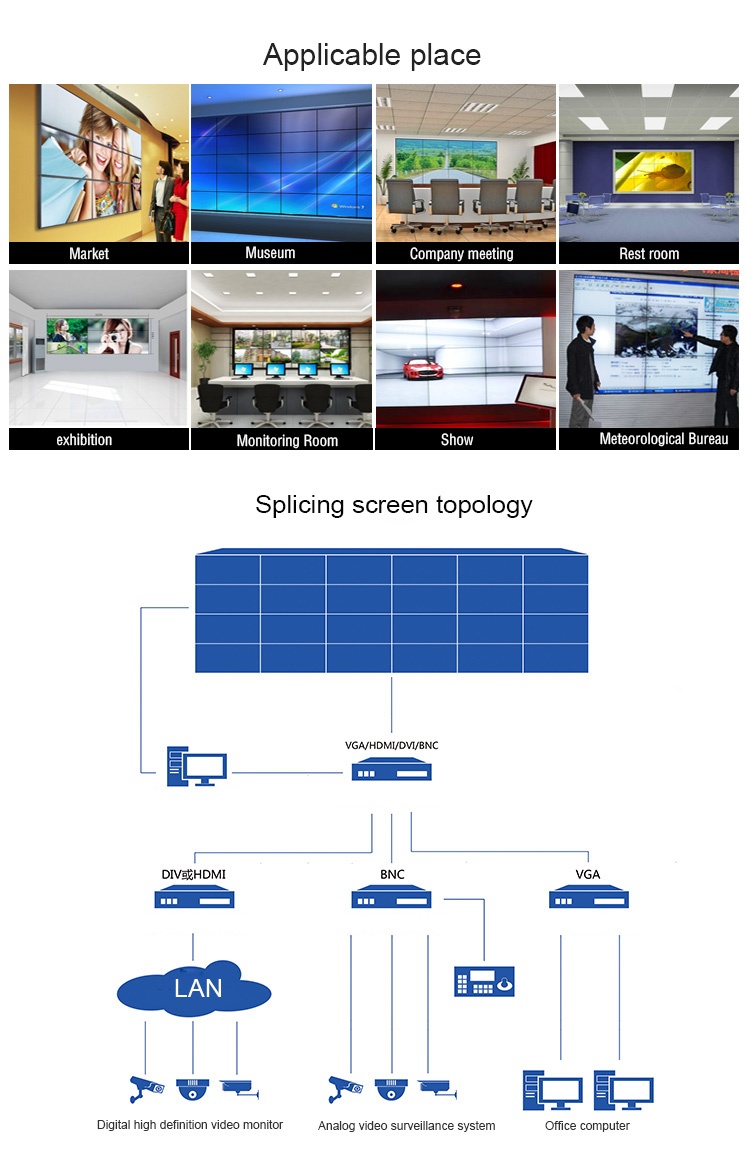

10.49″ 1.7mm ultra slim bezel provides a complete video wall systems that’s ideal for command & control centers, offices, shopping malls, stadiums, concert halls, and public transportation.
11.HD 1920 x 1080 Full HD Resolution
12. Ultra Slim Bezel 3.5mm
13.LED Backlight Unit
-
49‘‘ 46‘‘ 49‘‘ 55‘‘ 65‘‘ DID IPS OEM 4K Splicing Advertising Split Screen Multiple 3X3 Lcd Video Wall

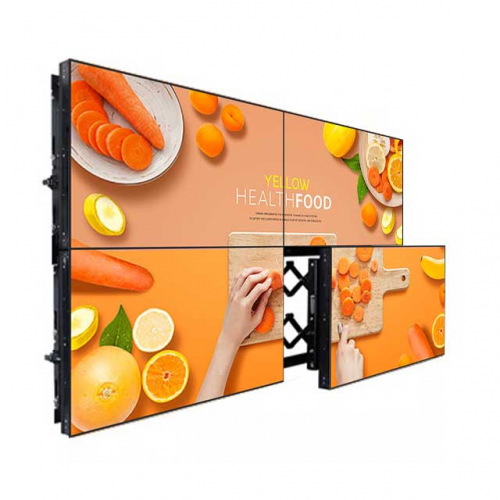

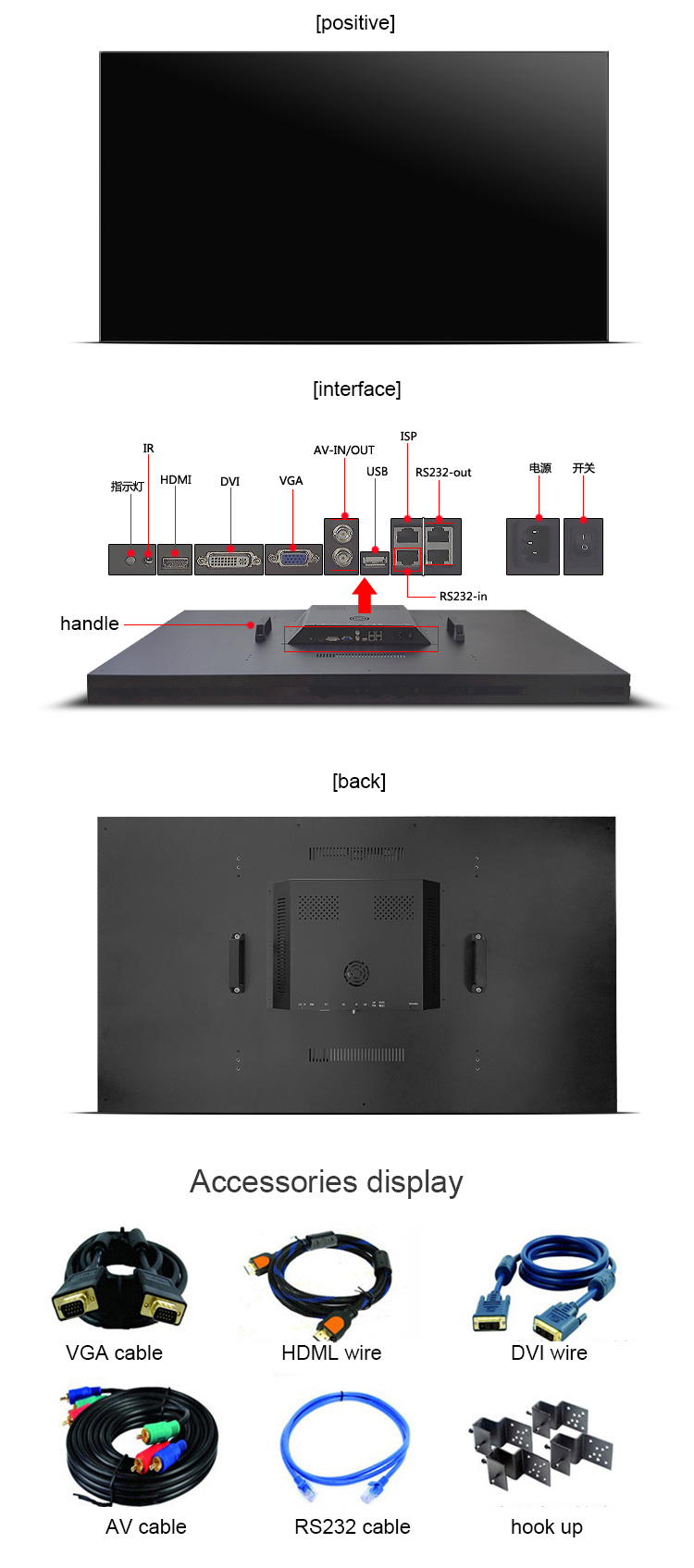

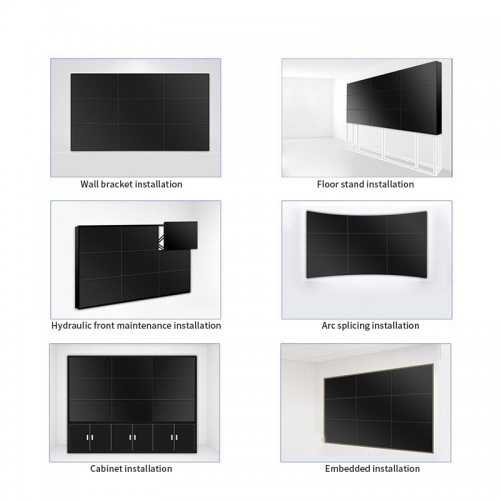

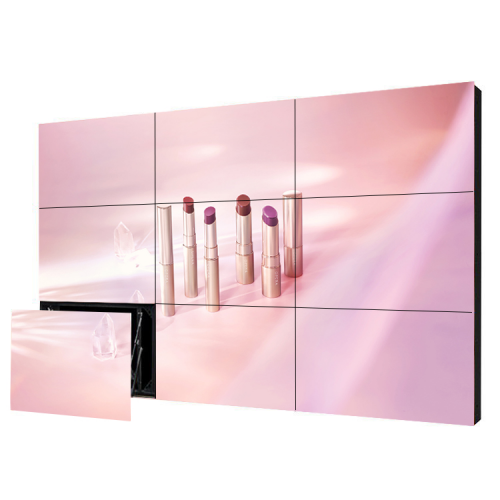

1).Built-In Video Processor for Daisy Chain2).Display 4K Content Over 2 x 2 Video Wall3).Configurable Up To 10 x 10 Screens4).Support HDMI, Display Port, and RS232C Input Interface5).Design for 24 / 7 / 365 Operation6).Scissor, Swing Door, Floor Stand, Custom Design Mount7).When you buy a video wall bundle, you get wall mounts and a cable for daisy chaining, creating a ready-to-go solution.Description:1).Borderless design with its 1.7mm even panel bezel and 3.5mm, enables immersive and near seamless viewing experiences on assembled video wall screens.Panel Bezel : The black matrix section where an image is not displayed on the front panel(Bezel to Bezel) : Panel Bezel + Panel Bezel (Borderless type, no metal bezel)2)Clear Viewing Angle,Ensure clear picture quality, even when installed in arrays of more than four, ideal for installations in large spaces. The angle from the center of the screen to have 50 of the initial luminance.3).Uniform Brightness,Samsung/LG’s LED backlight technology provides high uniformity in brightness to ensure a clear picture. On other screens, certain spots may appear darker than others, high visibility and a consistent brightness across the whole screen.4).LAN Daisy Chain Performance,The LAN daisy chain allows you to execute commands to control and monitor the screens, and even update their firmware.5).Guide Bracket / Classified Port,A guide bracket is an attachment that ensures the video wall remains flat. The classified in/out port prevents errors when connecting a daisy chain.6).Control Buttons,With 8 control buttons, it’s easy to operate various functions of the 49VM5C, such as controlling the OSD (On Screen Display) and changing the input source.
Specifications:
LG Display Application DetailsBasic InfoBasic InfoPanel BrandPanel ModelLD490DUN-THC4Diagonal Size49"Model AliasLD490DUN (TH)(C4)Panel Typea-Si TFT-LCD , LCMStorage Temp.-20 ~ 60 °CPixel FeaturesPixel Format1920(RGB)×1080, FHDDot Pitch0.18642×0.55926 mm (H×V)ConfigurationRGB Vertical StripePixel Pitch0.55926×0.55926 mm (H×V)Mechanical SizeDisplay Area1073.78×604 mm (H×V)Outline Dim.1074.1×604.3 mm (H×V)Outline Dim.1077.6×607.8 mm (H×V)Outline Depth36.7/55.6 (Typ./Max.) mmOutline FeaturesForm FactorFlat RectangleOrientationLandscape / PortraitAspect Ratio16:9 (H:V)Videowall Seam3.8 mm (Active to Active)Basic InformationBrightness450 cd/m² (Typ.)Contrast Ratio1300:1 (Typ.) (Transmissive)Viewing Angle89/89/89/89 (Typ.)(CR≥10)Optical ModeS-IPS, Normally Black, TransmissiveViewing DirectionSymmetryResponse Time8 (Typ.)(G to G) msColor PerformanceChromaticityWx:0.279; Wy:0.292Color Numbers16.7M/1.07B (8-bit / 8-bit + Dithering)Color Temperature9972KUniformity1.54 (Max.)(9 points)1931 Color GamltNTSC Ratio72%sRGB98% coverageAdobe RGB75% coverageDCI-P375% coverageRec.202054% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)Frame Frequency60HzReverse ScanNoPower Consumption82.1W (Typ.)Power supplyAC 110V - 240V, 50/60HZ
Storage Temperature-7 to 65 Celsius degree
Normal Working Temperature-5 to 65 Celsius degree
Why choose us:1. >8-years professional manufacturing experience only in digital signage field.2. LCD display projects from 8" to 108‘ in various brightness can be tailor-made according to your specific requirements.3. Rich experience in OEM and ODM projects in more than 10 years.4. Less MOQ can meet your various requirements.5. Fast delivery time, sample needs 10-15days, bulk needs 15-20days, have stock of standard item.6. Flexible Payment term: support T/T, L/C, Westunion, Paypal.7. Shipments: Internation express, airfreight, oceanfreight.8. Warranty: 2-years warranty, lifetime maintenance.FAQQ: Is your company a real manufacturer?A: Yes, sure. Shenzhen Yameishi Technology Co.,Ltd is a professional manufacturer in Longgang district, Shenzhen city, welcome to visit our factoryanytime.Q:Can you provide OEM service for the all in one smart interactive whiteboard?A: Yes,well supported.We can customize it according to your requests.Q:Do you have stock?A:We keep 2000 units in Stock every single Month.Q: How is the quality of the product?A: We have a dust-free workshop, all our products have been strictly tested high quality by QC before shipping to customers.quality is the first thing for us!Q: How can I trust your product quality?A: We have more than 8 years export experience. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE/ROHS/FCC etc.Q: Does the product only use for school?A: Yes, our products are widely used in Hospital, School, office etc.Q: What‘s your after-sale service?A: 2 years warranty on parts is provided under normal use. If any defects happen during the period, please send us the details and you will get our reply within 24 hours. Solution will be offered instantly. If necessary, spare parts for free can be provided.
