Lcd video wall

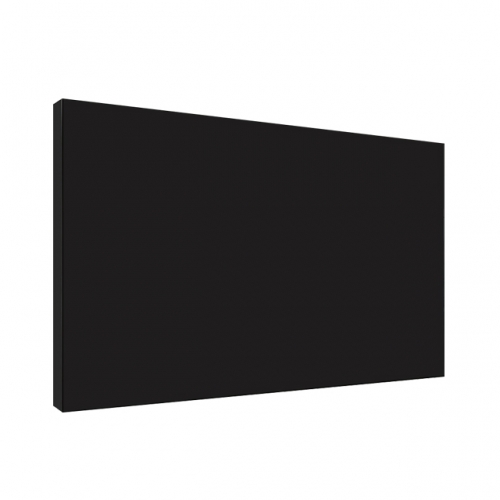

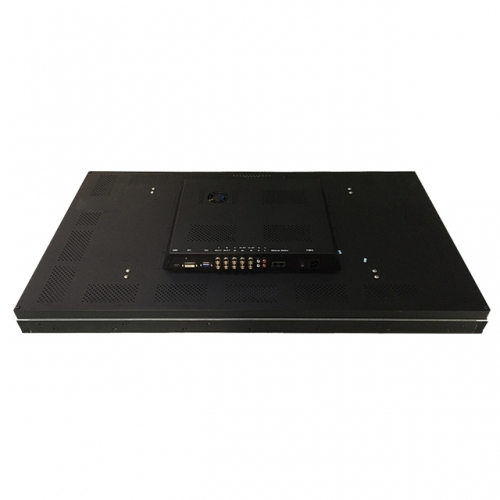

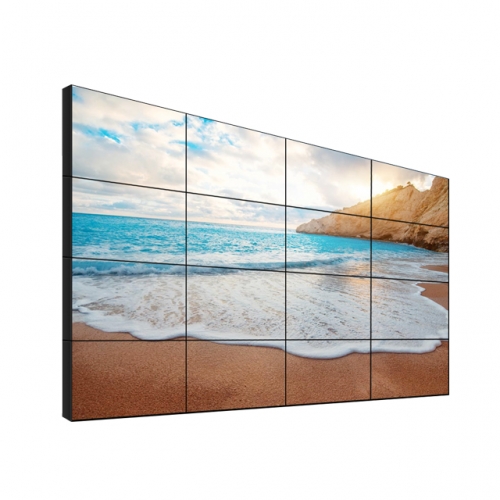

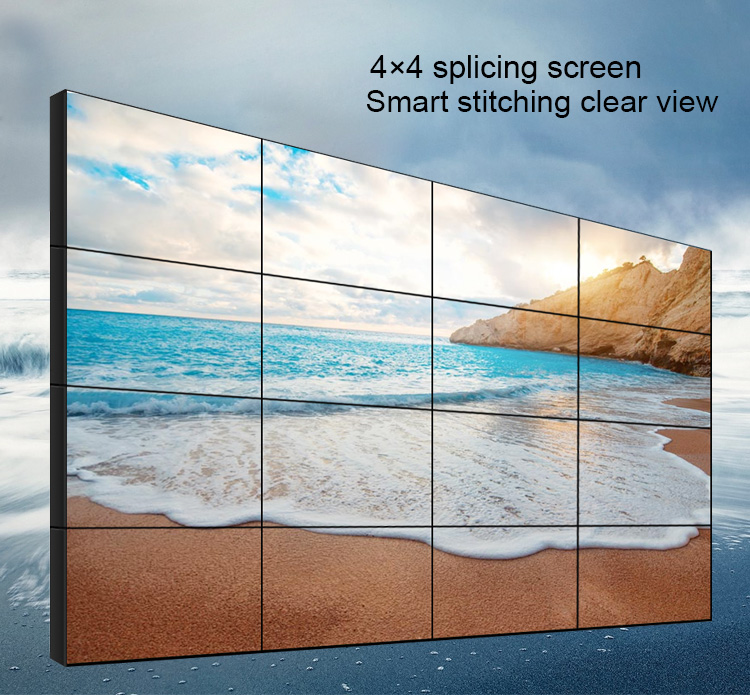

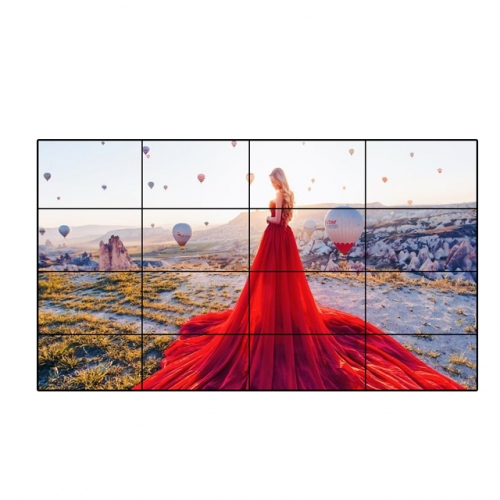

China Factory 46inch lcd splicing screen tv display super narrow bezel 3.5mm gap 4×4 lcd video wall
Shenzhen Yameishi Technology Co.,Ltd LCD VIDEO WALL :

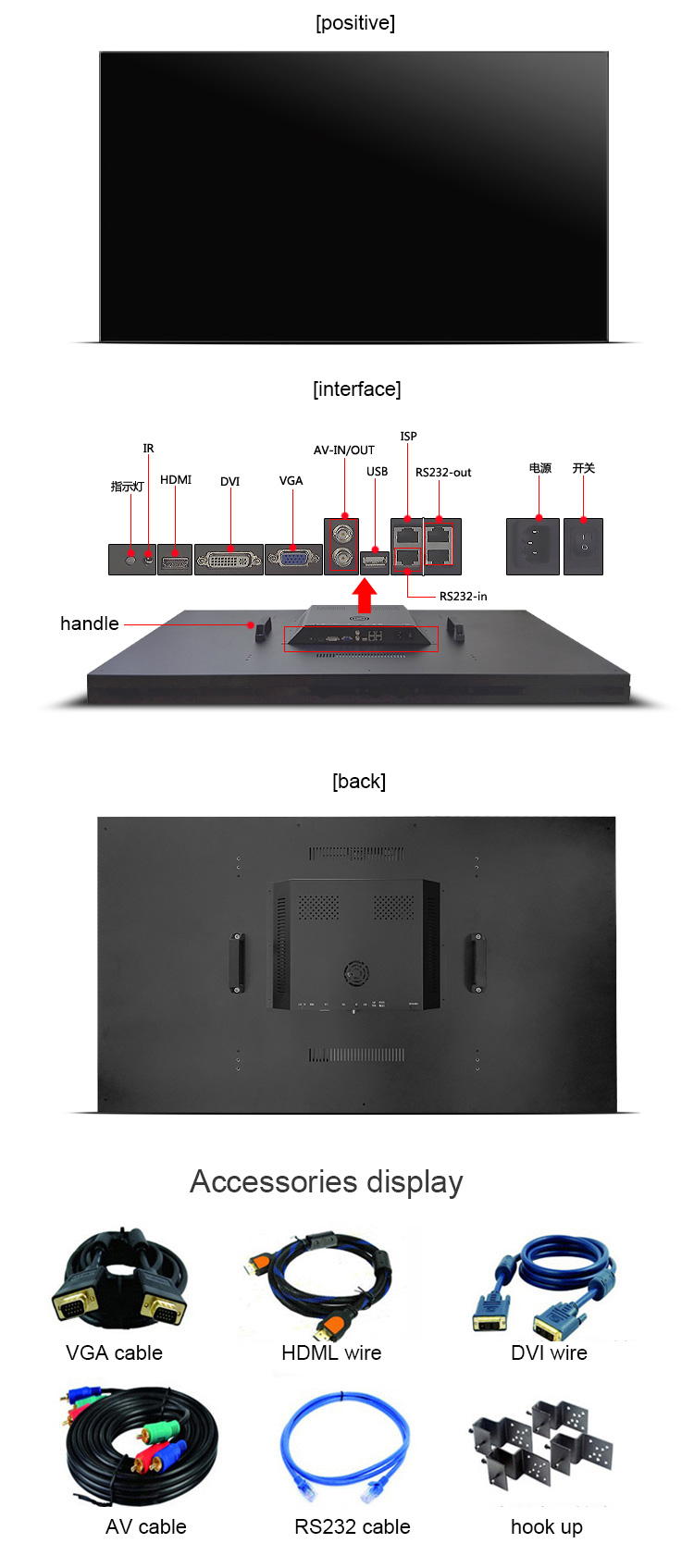

The splicing screen is a complete LCD splicing display unit, which can be used alone as a display, or can be spliced into a large screen using LCD. According to different usage needs, it can achieve variable and large screen functions: single-screen split display, single-screen separate display, arbitrary combination display, full-screen LCD stitching, vertical screen display, and the image frame can be optionally compensated or covered. Support HDMI, Display Port, and RS232C Input Interface,DVI, SDI ect option.

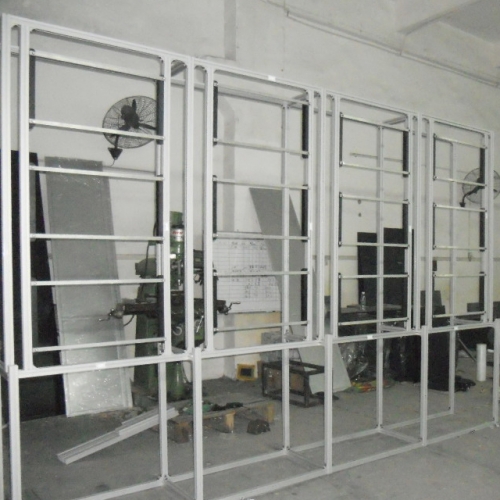

Working for 24 / 7 / 365 Operation.Scissor, Swing Door, Floor Stand, Wall mounted,Custom Design Mount,push pull option

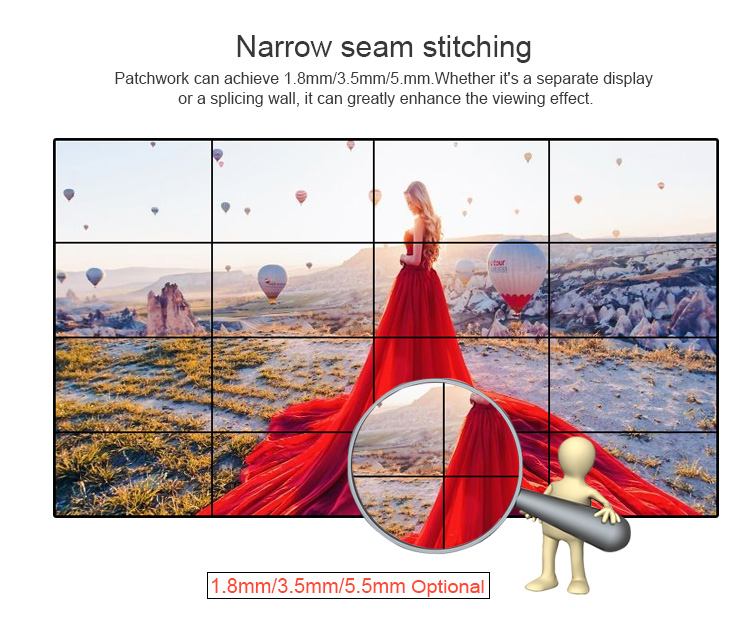

When you buy a video wall bundle, you get wall mounts and a cable for daisy chaining, creating a ready-to-go solution.3.5mm gap DID 4k splicing lcd video wall each edge less 1.8mm super narrow beze size.
-
Ultra narrow border 3.5mm Digital signage Splicing Screen 46inch 4×4 video wall China Factory

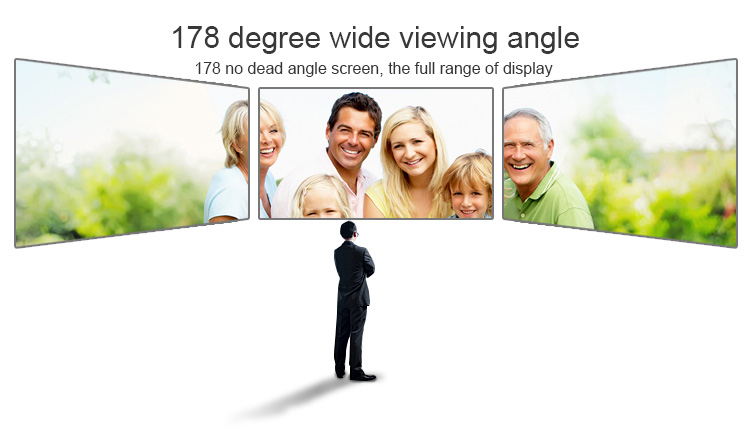

Splicing LCD TV monitor Features1. Super long life. With the advancement of science and technology, the service life of LCD products can reach more than 50,000 hours (mainly affected by backlight sources). At present, the mainstream LED backlight technology in the market has basically shaken off the restrictions of the CCFL backlight era. When it reaches more than 100,000 hours, the brightness can reach 1000 lumens, and the light source will not dim after long-term use.2. Large perspective. For the early LCD products, the viewing angle used to be a big problem restricting the liquid crystal, but with the continuous progress of LCD technology, this problem has been completely solved. Like the splicing screen using DID and IPS technology, its viewing angle The angle can reach an unprecedented 178 degrees.3. High resolution. According to the current mainstream market technology, the physical resolution of liquid crystal displays can easily reach the retinal level that cannot be distinguished by the naked eye, the brightness and contrast of liquid crystals are very high, the colors are bright and bright, and the image is stable and does not flicker.4, ultra-thin and lightweight. The liquid crystal has the characteristics of thin thickness and light weight, and can be easily spliced and installed. The 55-inch special LCD screen weighs only 30KG and has a thickness of less than 11 cm, which is unmatched by other display devices.5. Extremely low power consumption. Liquid crystal display equipment, low power, low heat has always been praised, only 3W in standby.6. Low failure rate. Liquid crystal is currently the most stable and reliable display device. Due to the small amount of heat generated, the device is stable and will not cause failure due to excessive temperature rise of the components.Because the backlight of the LCD product limits the size of the LCD panel, the DID and IPS LCD screen frame used by the splicing screen is still 4mm-7mm wide, so the slightly larger splicing seam is the only disadvantage of the LCD splicing curtain wall. With the gradual maturity of OLED technology, this defect will be significantly improved..Specifications:
Samsung DID PanelBasic InfoBasic InfoPanel BrandPanel ModelLTI460HN11Diagonal Size46"Model AliasLTI460HN11Panel Typea-Si TFT-LCD , LCMStorage Temp.-20 ~ 65 °CPixel FeaturesPixel Format1920(RGB)×1080, FHDDot Pitch0.17675×0.53025 mm (H×V)ConfigurationRGB Vertical StripePixel Pitch0.53025×0.53025 mm (H×V)Mechanical SizeActive Viewing1018.08(H)×572.67(V) mm
Outline Dim.1018.28×572.87 mm (H×V)Bezel Opening1018.28(H)×572.87(V) mm
Outline Depth40.3/72.1 (Typ./Max.) mmOutline FeaturesForm FactorFlat RectangleOrientationLandscape / PortraitAspect Ratio16:9 (H:V)Videowall Seam3.5 mm (Active to Active)Holes & BracketsSide mounting holes, Rear mounting holesOther FeaturesWeight13.5/14.2Kgs (Typ./Max.)SurfaceAntiglare (Haze 3%), Hard coating (2H)Optical DetailsBasic InformationBrightness500 cd/m² (Typ.)Contrast Ratio3000:1 (Typ.) (Transmissive)Viewing Angle89/89/89/89 (Typ.)(CR≥10)Optical ModeSVA, Normally Black, TransmissiveViewing DirectionSymmetryResponse Time8 (Typ.)(G to G) msColor PerformanceChromaticityWx:0.280; Wy:0.290Color Numbers16.7M/1.07B (8-bit / 8-bit + Dithering)Color Temperature9969KUniformity1.33 (Max.)(9 points)1931 Color GamltNTSC Ratio71%sRGB100% coverageAdobe RGB74% coverageDCI-P374% coverageRec.202053% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)Frame Frequency60HzReverse ScanNoPower Consumption82.1W (Typ.)Power supplyAC 110V - 240V, 50/60HZ
Storage Temperature-7 to 65 Celsius degree
Normal Working Temperature-5 to 65 Celsius degree

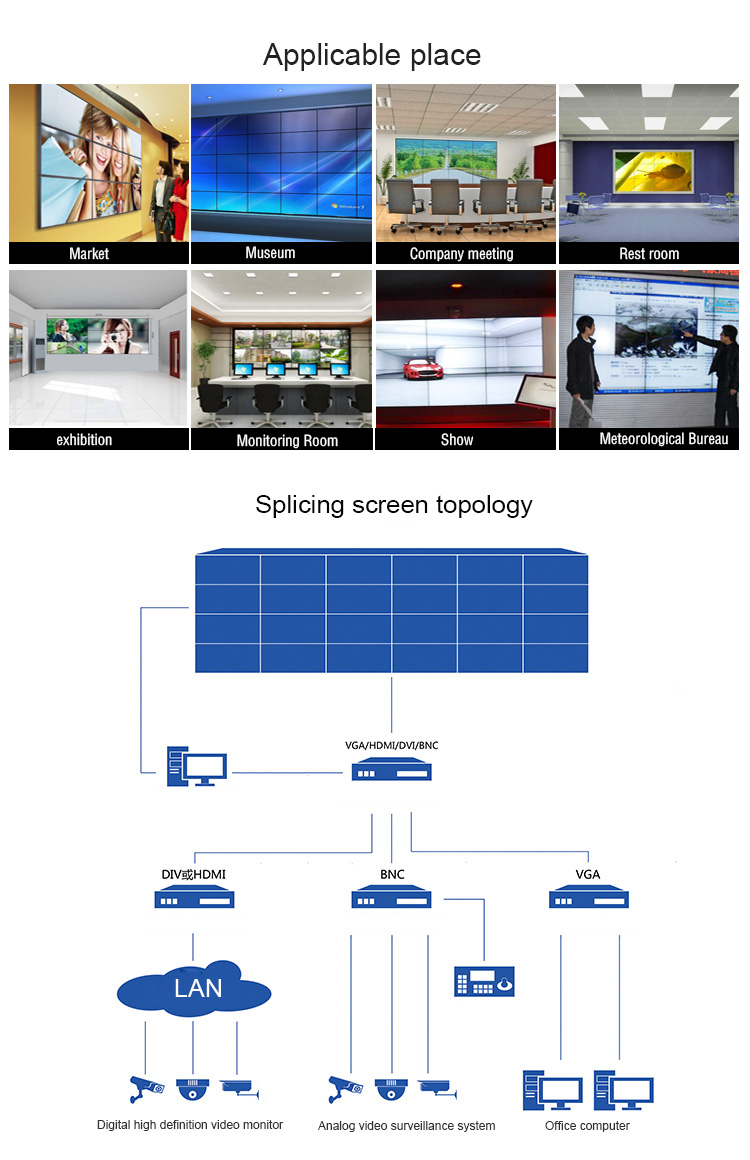

Business Organizations
supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations
Banks, negotiable securities, funds, insurance companies, pawnshops;
Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Public Places
subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
EntertainmentsMovie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
Tag:lcd splicing screen;splicing screen tv display;digital signage and display splicing screen
Why choose Shenzhen Yaimeishi Technology Co.,Ltd:1. >8-years professional manufacturing experience only in LCD digital signage field.2. LCD display projects from 8" to 108‘ in various brightness can be tailor-made according to your specific requirements.3. Rich experience in OEM and ODM projects in more than 10 years.4. Less MOQ can meet your various requirements.5. Fast delivery time, sample needs 10-15days, bulk needs 15-20days, have stock of standard item.6. Flexible Payment term: support T/T, L/C, Westunion, Paypal.7. Shipments: Internation express, airfreight, oceanfreight.8. Warranty: 1-year warranty, lifetime maintenance.
FAQQ: Is your company a real manufacturer?A: Yes, sure. Shenzhen Yameishi Technology Co.,Ltd is a professional manufacturer in Longgang district, Shenzhen city, welcome to visit our factoryanytime.
Q:Can you provide OEM service for the all in one smart interactive whiteboard?A: Yes,well supported.We can customize it according to your requests.
Q:Do you have stock?A:We keep 2000 units in Stock every single Month.
Q: How is the quality of the product?A: We have a dust-free workshop, all our products have been strictly tested high quality by QC before shipping to customers.quality is the first thing for us!
Q: How can I trust your product quality?A: We have more than 8 years export experience. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE/ROHS/FCC etc.
Q: Does the product only use for school?A: Yes, our products are widely used in Hospital, School, office etc.
Q: What‘s your after-sale service?A: 2 years warranty on parts is provided under normal use. If any defects happen during the period, please send us the details and you will get our reply within 24 hours. Solution will be offered instantly. If necessary, spare parts for free can be provided.
Shenzhen Yameishi Technology Co., Ltdwas founded in 2015 which is an engineering and manufacturing company focus on various advertising equipment. Including: media player, Outdoor waterproof digital signage, LCD displays advertising screen, monitors, Wireless network Ad player, Bus media player, Ad player media box, DID Video Wall etc.
Our workshop covers an area of 5000 square meters equipped with 5 modern professional production lines , over 20 senior engineers and assembly assistant and 2 professional after-sales engineers , all the staff must be trained in pre-service, the current daily output can reach to 500 units.
